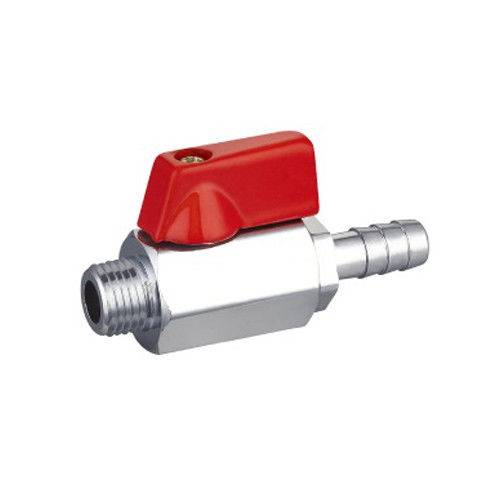

PN25 Mini Ball Valve Female And Male Threaded Ball Valve With Carbon Steel Handle
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1062 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 pcs |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Ball, | Application: | General |
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| High Light: | PN25 Mini Ball Valve,threaded Mini Ball Valve,PN25 threaded ball valve |
||
Product Description
factor mini Ball Valve Brass ball Valve female and male threaded ball valve with Carbo Steel handle
Model NO.: LT-1062
Brass Valve
1. Construction: Two Piece Body, Forged Brass Virgin Ptfe Seat, Blow-out Proof Stem.
2. Working Pressure: PN25
3. Applicable Medium: Water, Oil, Gas, Non- Causticity Saturated Steam
4.Working Temperature:-20℃-180℃
5.Parallel Thread Confomm To lS0-228-1:2000

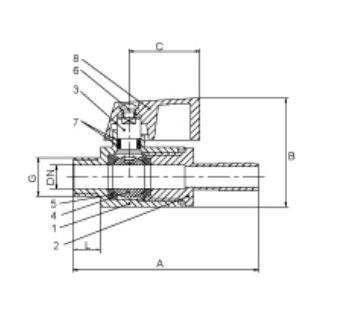

| NO. | COMPONENT | MATERIAL |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Stem | Brass |
| 4 | Bal | Brass |
| 5 | Seat ring | PTFE |
| 6 | Stem packing | PTFE |
| 7 | Packing gland | Brass |
| 8 | NUt | Steel |
| 9 | Handle | Carbo Steel |
