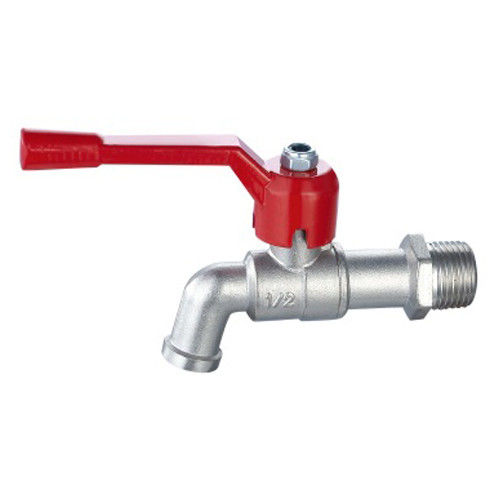

Brass Ball Bibcock Threaded Valve With Brass Body And Plastic Filter Rubber Gasket
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-2009A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water | Material: | Brass/Zinc |
|---|---|---|---|
| Structure: | Ball | Application: | General |
| Power: | Manual | Product Name: | Bibcock |
| Medium: | Water | Standard: | ANSI |
| High Light: | Threaded brass ball bibcock,brass ball bibcock valve |
||
Product Description
factory threaded Bibcock Ball Valve with Brass body and plastic filter rubber gasket Bibcock used for water only
Model NO.:LT-2009A
Bibcock
1. Construction: Two Piece Body, Forged Brass Virgin Ptfe Seat, Blow-out Proof Stem Al Handle.
2.Working Pressure: PN16
3. Applicable Medium: Water
4. Working Temperature: 0'Cs T ≥100℃
5.Parallel Thread Confomm To lSO-228-1:2000
| NO. | COMPONENT | MATERIAL |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Stem | Brass |
| 4 | Ball | Brass |
| 5 | Seat ring | PTFE |
| 6 | Screw cap | Brass |
| 7 | 0-ring | NBR |
| 8 | Filter | plastic |
| 9 | Nozzle | Brass |
| 10 | stem packing | PTFE |
| 11 | packing gland | Brass |
| 12 | Handle | AL |
| 13 | Nut | steel |
