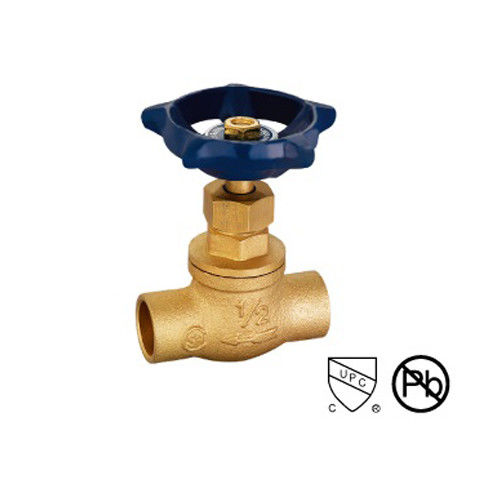

3/8"-3/4" Solder Ends Connect Brass Stop Valve Straight Through Type Renewable Seat And Disc
Product Details:
| Place of Origin: | China |
| Brand Name: | Meibo |
| Model Number: | LT-1403 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water | Material: | Brass |
|---|---|---|---|
| Structure: | Control | Application: | Residential, Commercial |
| Power: | Hydraulic | Product Name: | Brass Stop Valve |
| Medium: | Water Oil Gas | Standard: | NPT BSP |
| Customized Support: | OEM, ODM | Handle Type: | Lever |
| Certifications: | NSF, ANSI, UPC | End Connection: | NPT |
| Body Style: | Straight | Connection Type: | Threaded |
| Inlet Type: | Female | Pressure Rating: | 150 PSI |
| Type: | Stop Valve | Outlet Type: | Male |
| Size: | 1/2 Inch | Country Of Origin: | China |
| Temperature Rating: | Up To 200°F | Manufacturer: | Taizhou |
| High Light: | Straight brass stop valve 3/8",3/4" brass stop valve,Solder brass stop valve |
||
Product Description
high quality 3/8"-3/4" solder ends connect 3/8"-3/4"Brass Stop Valve Straight-Through Type Renewable Seat and Disc
Brass Stop Valve
Casting Body
3/8"-3/4"
Screw-Bonnet ・ Integral Seat • Renewable Seat and Disc
Solder Ends Comply With ANSI B16.18
Note: Plain
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Hand Screw | C37700 |
| Hand Wheel | Cast Iron With Painting |
| Name plate | AL alloy |
| Nut | Brass ASTM B124 C37700 |
| O-ring | NBR |
| Stem | Brass ASTM B124 C37700 |
| Disc | EPDM |
| Body | ASTM B124 C37700 |
FAQ
1. Are you factory or trading company ?
YUHUAN MEIBO COPPER CO.,LTD. Is an export-oriented enterprise. Which is specialized in exporting a variety of valves, include ball valve, gate valve, ant-freezing valve, stop valve, check valve...Etc.
The factory YUHUAN MEIBO group include 3 professional valve production base, main valve production at the same time water heating accessories, all passed iso9001:2015 quality system certification, the total area is over 30000 square meters, annual turnover more than 30 million us dollar, we are dedicated in north american and europe market since the factory was founded in 1987, all products from us are sold abroad, 90% to north american and europe market.
We have an integrated quality guarantee system and after-sale services system. Advanced product equipment, perfect testing skills and quality assurance system make sure all products from us can pass the CSA and UPC test, multiple products have obtained CUPC, CSA and NSF certificates.
