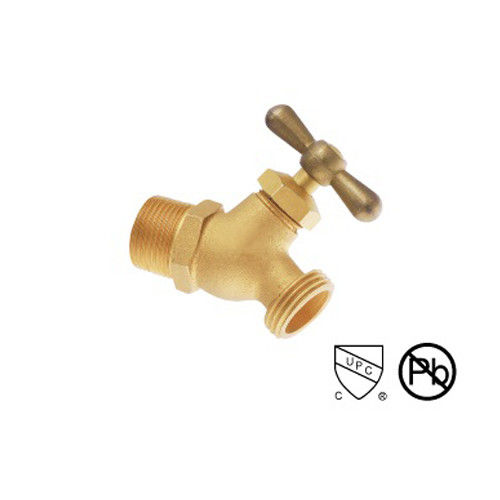

NPT BSP 1/2 Inch Boiler Drain Valve With Male Threaded , 1/2 Male Boiler Drain
Product Details:
| Place of Origin: | China |
| Brand Name: | Meibo |
| Model Number: | LT-19302 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water | Material: | Brass |
|---|---|---|---|
| Structure: | Control | Application: | Boiler Drain |
| Power: | Hydraulic | Product Name: | Boiler Drain Valve |
| Medium: | Water Oil Gas | Standard: | NPT BSP |
| Customized Support: | OEM, ODM | Maximum Temperature: | 200°F |
| Maximum Pressure: | 125 Psi | Inlet Type: | MNPT |
| Connection Type: | Male Threaded | Manufacturer: | Watts |
| Handle Type: | T-Handle | Operation Type: | Quarter Turn |
| Valve Type: | Full Port | Outlet Type: | Hose |
| Drain Type: | Quarter Turn | Size: | 1/2 Inch |
| High Light: | NPT 1/2 Male Boiler Drain,Threaded 1/2 inch boiler drain valve,Threaded 1/2 male boiler drain |
||
Product Description
1. The LT-19302 model is a boiler drain that features a casting body and a rising stem pipe. The threaded design of this boiler drain complies with the ANSI B16.18 standard, ensuring a secure and reliable connection. Additionally, the hose threaded portion of this boiler drain complies with the ASME B1.20.7 standard. It is important to note that the hose threaded portion is plain, without any additional features.
2. The materials used in the construction of this boiler drain are of high quality and meet industry standards. The hand screw is made of C37700, a durable and corrosion-resistant material. The handle is made of cast iron and is coated with a protective paint, ensuring longevity and ease of use. The nut is made of brass, specifically ASTM B124 C37700, which provides excellent strength and resistance to wear and tear. The O-ring is made of NBR, a synthetic rubber known for its excellent sealing properties. The stem of the boiler drain is made of brass, specifically ASTM B124 C37700, ensuring durability and reliability. Finally, the body of the boiler drain is also made of ASTM B124 C37700 brass, ensuring a strong and sturdy construction.
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Hand Screw | C37700 |
| handle | Cast Iron With Painting |
| Nut | Brass ASTM B124 C37700 |
| O-ring | NBR |
| Stem | Brass ASTM B124 C37700 |
| Body | ASTM B124 C37700 |
