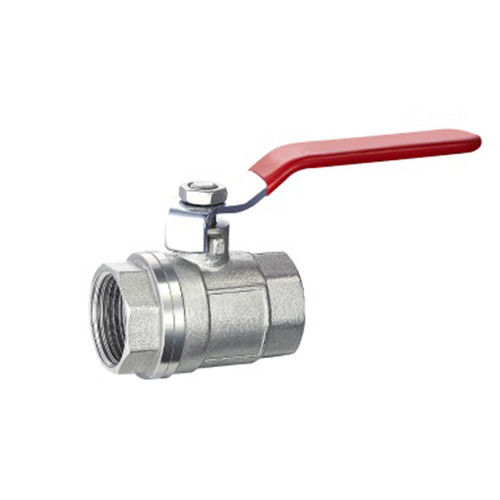

HPb59-1 1/2 inch to 4 inch Brass Copper Ball Valve Water Female Threaded Materials brass ball valve for pipe fitting
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1001A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Ball | Application: | General |
| Power: | Hydraulic | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| Lead Time: | 21 Days | Handle Finish: | Chrome Plated |
| Size: | 1/2 Inch | Gasket: | FTFE |
| Threaded: | ISO228/1 | Handle Material: | Iron,S / S |
| Product Number: | QS-2-021 | Handle: | Steel/AL/Butterfly Handle |
| Flow Direction: | Bidirectional | Working Pressure: | 3Bar |
| Stem Material: | Brass | Seal Material: | PTFE |
| Packing: | PP Plastic + Carton | Temperature: | -10-110 |
| High Light: | copper ball valve water,water Copper Ball Valve,1/2 inch Copper Ball Valve |
||
Product Description
factory HPb59-1 female threaded materials metal connector thread brass copper ball valve water valve brass valve
Model NO.: LT-1001A
Brass Valve
1. Construction: Two Piece Body, Forged BrassVirgin Ptfe Seat. Blow-out Proof StemCarbon Steel Handle.
2.Working Pressure: PN20
3. Applicable Medium: Water, Oil, Gas, Non-causticitySaturated Steam
4.Working Temperature:-20℃sT2180C5.Parallel Thread Confomm To lSO-228-1: 2000
| NO. | COMPONENT | MATERIAL |
| 1 | Body | HPb59-1 |
| 2 | Bonnet | HPb59-1 |
| 3 | ball | HPb59-1 |
| 4 | Seat ring | PTFE |
| 5 | Stem | HPb59-1 |
| 6 | O-ring | NBR |
| 7 | Handle | carbon steel |
| 8 | Nut | steel |
The brass copper ball valve is made from HPb59-1 factory materials, featuring a female threaded connector for easy installation. This high-quality brass valve is designed to control the flow of water efficiently and effectively. Made from durable metal, this valve ensures long-lasting performance and reliability in various plumbing applications.
| DIMENSIONS | ||||||||
| SIZE/MODEL | G | DN | A | B | C | L | Weight(G) | Pcs/Ctn |
| LT-1001A | 1/4“ | 10 | 41.5 | 37.5 | 10 | 10 | 130 | 240 |
| 3/8“ | 10 | 44 | 37.5 | 10 | 10 | 135 | 240 | |
| 1/2“ | 14.5 | 47.5 | 39 | 10.5 | 10.5 | 150 | 120 | |
| 3/4” | 18.5 | 50.5 | 48 | 10.5 | 10.5 | 205 | 120 | |
| 1“ | 23.5 | 62 | 56 | 14.5 | 14.5 | 370 | 60 | |
| 1 1/4" | 30 | 73 | 65 | 15 | 15 | 530 | 40 | |
| 1 1/2" | 37 | 84 | 78 | 16 | 16 | 750 | 32 | |
| 2" | 43.5 | 101 | 85 | 16 | 16 | 1150 | 20 | |
| 2 1/2" | 62 | 127 | 115 | 19 | 19 | 2500 | 8 | |
| 3" | 73 | 146.5 | 127.5 | 24.5 | 24.5 | 3600 | 6 | |
| 4" | 90 | 167 | 134.5 | 24.5 | 24.5 | 5200 | 4 |
1. The brass copper ball valve, known as HPb59-1, is a versatile pipe fitting that ranges in size from 1/2 inch to 4 inches. This valve is constructed using high-quality brass materials, ensuring durability and longevity. With its female threaded design, it can easily be connected to various plumbing systems, providing a reliable and efficient water flow control solution.
2. Crafted from premium brass materials, the HPb59-1 ball valve offers exceptional performance and reliability. Its sturdy construction guarantees resistance to corrosion and wear, making it suitable for long-term use in different environments. The valve's female threaded design allows for easy installation and connection to pipes, ensuring a secure and leak-free joint. Whether used in residential or commercial applications, this brass copper ball valve is a reliable choice for efficient water flow control.
3. The HPb59-1 brass copper ball valve is a top-notch pipe fitting that offers excellent functionality and durability. Its brass construction ensures superior strength and resistance to rust, making it ideal for use in water systems. With a size range from 1/2 inch to 4 inches, this valve can accommodate various pipe sizes, providing versatility in plumbing installations. Its female threaded design allows for easy connection and disconnection, simplifying maintenance and repairs. Trustworthy and efficient, this ball valve is a valuable addition to any plumbing system.
