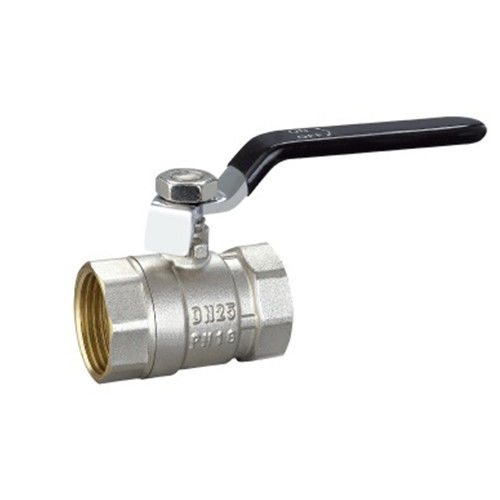

Industrial Metal NPT BSP Brass Water Thread Ball Valve Female ANSI Standard female threaded
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1012 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Structure: | Ball | Product Name: | Brass Ball Valve |
|---|---|---|---|
| Medium: | Water Oil Gas | Standard: | ANSI |
| Connection: | Male-Female | Oem: | Provide OEM Services |
| Seal Material: | PTFE | Handle Type: | Lever |
| Surface Finish: | Nickel Plated | Power: | Manual |
| Color: | Silvery White | Handle: | Red Handle |
| Threaded: | ISO228/1 | Sureface: | Nickel |
| Brass Material: | HPB57-3 | Product Number: | QS-2-005 |
| Surface Treatment: | Nature Color | Type: | Full Port |
| Seal: | PTFE Seal | ||
| High Light: | industrial brass ball valve,industrial brass lever ball valve,npt brass ball valve |
||
Product Description
originfactory female industrial materials metal connector NPT BSP thread brass copper ball valve water valve brass valve
Model NO.: LT-1001A
Brass Valve
1. Construction: Two Piece Body, Forged BrassVirgin Ptfe Seat. Blow-out Proof StemCarbon Steel Handle.
2.Working Pressure: PN16
3. Applicable Medium: Water, Oil, Gas, Non-causticitySaturated Steam
4.Working Temperature:-20℃-180C
5.Parallel Thread Confomm To lSO-228-1: 2000
| NO. | COMPONENT | MATERIAL |
| 1 | Body | Brass |
| 2 | Seat ring | PTFE |
| 3 | Ball | Brass |
| 4 | Bonnet | Brass |
| 5 | O-ring | NBR |
| 6 | stem | Brass |
| 7 | nut | steel |
| 8 | handle | carbo steel |
The female industrial materials metal connector with SS thread is an essential component in various settings, typically a factory or industrial environment. This connector is made of durable materials such as brass and copper, ensuring reliability and longevity in its performance. Its main function is to control the flow of water through a brass valve, which is an important part of many systems requiring precise regulation of fluids.
