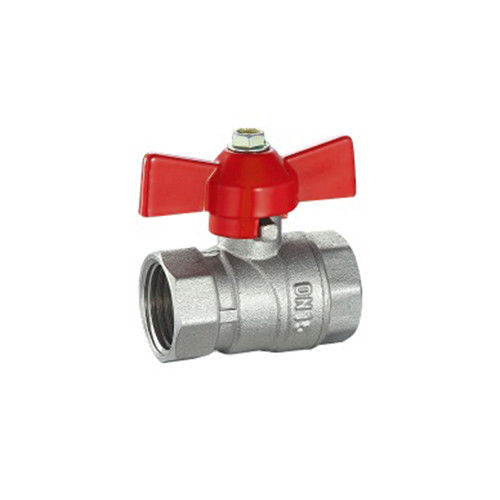

Forged ANSI SS Brass Threaded Ball Valve With Virgin Ptfe Seat And Blow Out Proof Stem
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1045FF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Structure: | Ball |
|---|---|---|---|
| Product Name: | Brass Ball Valve | Medium: | Water Oil Gas |
| Standard: | ANSI | Handle Material: | Aluminium |
| Handle Type: | Lever | Flow Rate: | Full Port |
| Application: | Water, Oil, Gas | Technics: | Forged, |
| Port: | Ningbo/shanghai | Working Temperature: | -20oC To 120oC |
| Material: | Brass | Quality Guarantee: | Yes |
| Lead Time: | 21 Days | Temperature: | -10-110 |
| Warranty: | 12 Months | Type: | Ball Valve |
| Seat Material: | PTFE | Gasket: | NBR |
| High Light: | SS Brass Threaded Ball Valve,ANSI Threaded Ball Valve,ANSI forged brass valve |
||
Product Description
high quality SS brass threaded ball valve Forged Brass Ball Valve with Virgin Ptfe Seat and Blow-out Proof Stem
Model NO.: LT-1047FF
Brass Valve
1. Construction: Two Piece Body, Forged BrassVirgin Ptfe Seat, Blow-out Proof StemA Handle.
2.Working Pressure: PN40
3. Applicable Medium: Water, Oil, Gas, Non- CausticitySaturated Steam
4. Working Temperature:-20'℃-180℃
5.Parallel Thread Conform To lS0-228-1:2000
| NO. | COMPONENT | MATERIAL |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Stem | Brass |
| 4 | Ball | Brass |
| 5 | Seat ring | PTFE |
| 6 | Handle | AL |
| 7 | Screw | steel |
| 8 | O-ring | NBR |
The brass ball valve with a virgin PTFE seat is designed to withstand a working temperature range of -20°C to 180°C. The body, bonnet, stem, and ball of the valve are all made of durable brass material, ensuring strength and longevity. The seat ring, on the other hand, is made of virgin PTFE, which provides excellent chemical resistance and low friction properties. The valve also features an aluminum handle for easy operation and a steel screw for secure fastening. Additionally, an NBR O-ring is included to ensure a tight seal and prevent leakage.
