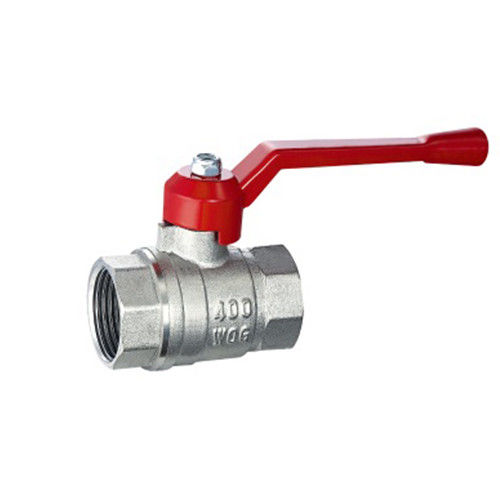

NPT BSP Thread Brass Copper Ball Valve Water Brass Valve Female Industrial Materials SS Metal Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1013 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Application: | General |
|---|---|---|---|
| Medium: | Water Oil Gas | Standard: | ANSI |
| Power: | Hydraulic | Manufacturer: | XYZ Company |
| Material Ball: | Brass | Size: | 1/2 Inch |
| Weight: | Middle And Heavier Type | Handle Finish: | Chrome Plated |
| Connection Type: | Threaded | Range: | Gas Pipe Connection |
| Stem Material: | Brass | Seal: | PTFE |
| Way: | 3 Way | Oem: | Provide OEM Services |
| Temperature Of Media: | Normal Temperature | Temperature Rating: | 200°F |
| Connection End: | Thread | ||
| High Light: | female copper ball valve,BSP copper ball valve,NPT copper ball valve |
||
Product Description
MB factory female industrial materials SS metal connector NPT BSP thread brass copper ball valve water valve brass valve
1. Construction: Two Piece Body, Forged Brass,Virgin Ptfe Seat, Blow-out Proof StemAl Handle.
2.Working Pressure: PN27.6/400PSI
3.Applicable Medium: Water, Oil, Gas, Non-causticitySaturated Steam
4.Working Temperature:-20℃-180℃
5.Parallel Thread Conform To lS0-228-1:2000
| NO. | COMPONENT | MATERIAL |
| 1 | Body | C3700 |
| 2 | Bonnet | C3700 |
| 3 | Ball | C3700 |
| 4 | Seat ring | PTFE |
| 5 | stem | C3700 |
| 6 | stem packing | PTFE |
| 7 | packign gland | C3700 |
| 8 | handle | AL |
| 9 | nut | steel |
| DIMENSIONS | ||||||||
| SIZE/MODEL | G | DN | A | B | C | L | Weight(G) | Pcs/Ctn |
| LT-1013 | 1/2" | 14 | 48 | 53 | 80 | 11.5 | 161 | 120 |
| 3/4" | 18 | 58 | 55 | 80 | 14 | 228 | 120 | |
| 1" | 23 | 65.5 | 61 | 101.5 | 14.5 | 337 | 60 | |
| 1 1/4" | 29 | 72.5 | 75.5 | 129 | 14.5 | 580 | 40 | |
| 1 1/2" | 37 | 89 | 92 | 159 | 18.5 | 962 | 24 | |
| 2" | 49 | 109 | 101.5 | 159 | 20.5 | 1670 | 20 | |
| 2 1/2" | 62 | 125 | 125 | 220 | 22 | 3670 | 8 | |
| 3" | 72.5 | 154.5 | 138 | 220 | 25 | 5122 | 6 | |
| 4" | 79 | 169 | 142.5 | 220 | 31 | 6795 | 4 |
1. The factory produces a wide range of industrial materials, including metal connectors, ball valves, and water valves. These products are made using high-quality materials such as brass and copper, ensuring durability and reliability. The connectors are designed to fit NPT and BSP threads, making them compatible with various plumbing systems. The ball valves are crafted with precision, allowing for smooth and efficient control of water flow. The water valves, made of brass, are specifically designed to regulate the flow of water in different applications.
2. Within the factory, there is a dedicated team of female workers who play a crucial role in the production process. These skilled individuals contribute to the manufacturing of industrial materials, including metal connectors, ball valves, and water valves. Their expertise and attention to detail ensure that each product meets the highest standards of quality. The female workers are trained in handling various materials, such as brass and copper, and are proficient in assembling and testing the valves. Their contribution to the factory's operations is invaluable, as they bring a unique perspective and skill set to the manufacturing process.
3. The metal connectors produced in the factory are designed to accommodate NPT and BSP threads, providing versatility and compatibility with different plumbing systems. These connectors are made from high-quality materials such as brass and copper, ensuring durability and resistance to corrosion. The ball valves, also made of brass, are precision-engineered to allow for smooth and reliable control of water flow. These valves are essential components in plumbing systems, providing a convenient way to regulate the flow of water in various applications. The water valves, crafted with precision and expertise, are specifically designed to meet the demands of different industries and applications. Made from brass, these valves offer excellent performance and longevity.
