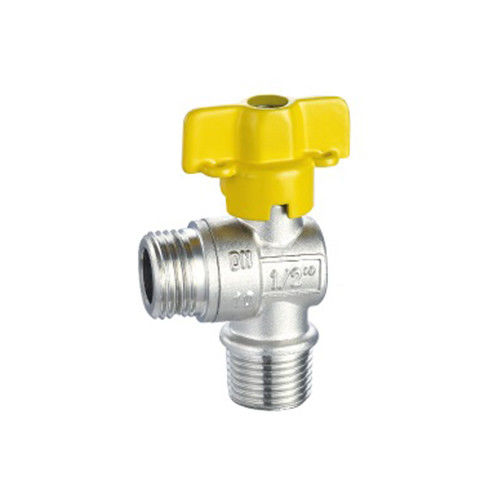

HPb59-1 Body Leaded Thread Brass Ball Valve Male Threaded Gas Water SS Manual For Piping Connections
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1081 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | HPb59-1 |
|---|---|---|---|
| Structure: | Ball | Application: | Water, Oil, Gas |
| Power: | Pneumatic | Product Name: | Leaded Ball Valve |
| Medium: | Water Oil Gas | Standard: | ISO9001 CE Customized |
| Thread: | BSP Or NPT | Handle Material: | IRON |
| Ball Seat Materila: | PTFE | Size: | 1/2 Inch |
| Pressure Rating: | 150 PSI | Product Number: | QS-6-001 |
| Range: | Gas Pipe Connection | Connection End: | Thread |
| Surface Finish: | Nickel Plating Or Shotting | Color: | Yellow |
| Warranty: | 3 Years | Port Size: | With Customer's Requirements |
| High Light: | Water Brass Ball Valve,Water thread brass ball valve,Body Leaded brass ball valve |
||
Product Description
HPb59-1 body leaded valve thread brass ball valve male threaded Gas Water SS Manual Used for piping connections
Model NO.: LT-1081
Brass Valve
1. Construction: Two Piece Body, Forged Brass.Virgin Ptfe Seat, Blow-out Proof Stem Al Handle.
2. Working Pressure: PN4
3. Applicable Medium: GAS
4. Working Temperature: -10℃-80℃
5.Parallel Thread Confomm To lso-228-1:2000
| DIMENSIONS | |||||||
| MODEL | G | A | B | C | L | WEIGHT/g | Pcs/Ctn |
| LT-1081 | 1/2" | 45 | 71 | 40 | 15 | 140 | 120 |
| NO. | COMPONENT | MATERIAL |
| 1 | Body | HPb59-1 |
| 2 | Bonnet | HPb59-1 |
| 3 | Stem | HPb59-1 |
| 4 | Ball | HPb59-1 |
| 5 | Seat Ring | PTFE |
| 6 | Handle | AL |
| 7 | 0-ring | NBR |
| 8 | ScreW | Steel |
The HPb59-1 body leaded valve is a brass ball valve that is specifically designed for male threaded gas and water connections. It is commonly used in piping systems for various applications. The valve features a manual operation, allowing users to control the flow of gas or water through the system. With its durable construction and reliable performance, this valve ensures secure and leak-free connections, making it a preferred choice for many piping installations.
