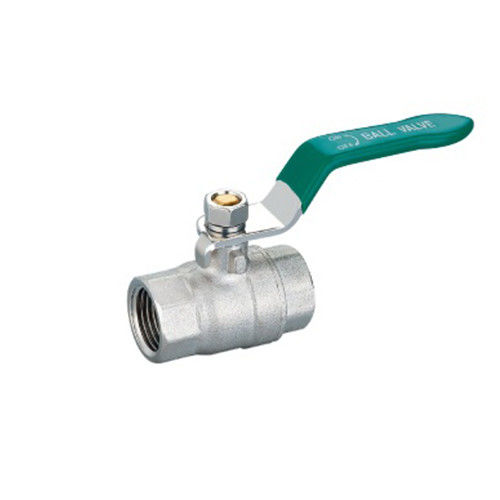

Female 1 / 2 Threaded Ball Valve SS Gas Water Chrome Plating Manual For Piping Connections
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1211 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water Oil Gas | Material: | Brass |
|---|---|---|---|
| Structure: | Ball | Application: | Water, Oil, Gas |
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| Flow Direction: | Bi-Directional | Test: | 100％leak Tested |
| Standard Or Nonstandard: | Standard | Seal Material: | PTFE |
| Nominal Pressure: | Max.25bar | Head Code: | Square |
| Temperature Rating: | 200°F | Warranty: | 3 Years |
| Thread: | BSP Or NPT | Range: | Gas Pipe Connection |
| Connection: | Female X Female Connection | Technology: | Forged |
| Surface Treatment: | Nature Color | ||
| High Light: | female 1 / 2 threaded ball valve,Water 1/ 2 threaded ball valve,Gas 1 / 2 threaded ball valve |
||
Product Description
female Threaded ball valve brass valve SS high quality Gas Water Chrome plating Manual Used for piping connections
Brass Ball Valve
Forged Two-Piece Body • STD Port
1/2″ (600WOG, 150WSP)
Threaded Comply With JISB0203
Note: Plain or Chrome plating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel Wth Chrome Plating |
| Nut | BrasS ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 |
| Packing | Tefon°(PTFE) |
| Seats | Tefion°(PTFE) |
| 0-ring | NBR |
| Body | Brass ASTM B124-C37700 |
