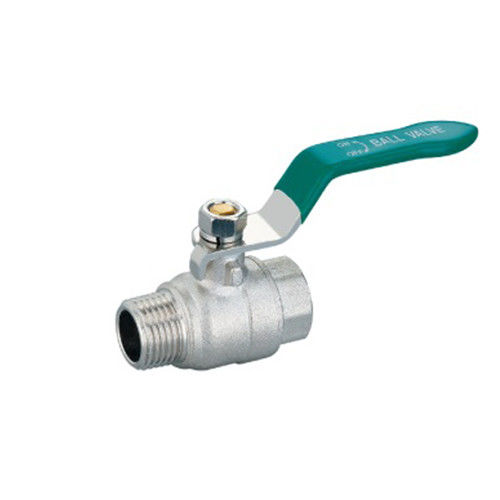

Male 1/2 Inch Threaded Ball Valve SS Valve Forged Gas Water Chrome Plating 1/2″ (600WOG, 150WSP)
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1212 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Ball | Application: | General |
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| Operation: | Quarter Turn | Port Size: | 1/2 |
| Technolgy: | Forged | Handle Material: | Iron Or Steel |
| Pressure Rating: | 150 PSI | Temperature Rating: | Up To 200°F |
| Threaded: | ISO228/1 | Type: | Ball Valve |
| Color: | Silvery White | Payment: | T/T, LC,D/P Etc... |
| Body Material: | Copper | Weight: | Middle And Heavier Type |
| Port: | Ningbo Or Shanghai | Head Code: | Square |
| Standard Or Nonstandard: | Standard | ||
| High Light: | Water 1/2 inch threaded ball valve,Gas 1/2 inch threaded ball valve,Male 1/2 inch threaded ball valve |
||
Product Description
male Threaded ball valve SS valve Forged Two-Piece Body Gas Water Chrome plating Manual Used for piping connections
Brass Ball Valve
Forged Two-Piece Body • STD Port
1/2″ (600WOG, 150WSP)
Threaded Comply With JISB0203
Note: Plain or Chrome plating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel Wth Chrome Plating |
| Nut | BrasS ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 |
| Packing | Tefon°(PTFE) |
| Seats | Tefion°(PTFE) |
| 0-ring | NBR |
| Body | Brass ASTM B124-C37700 |
