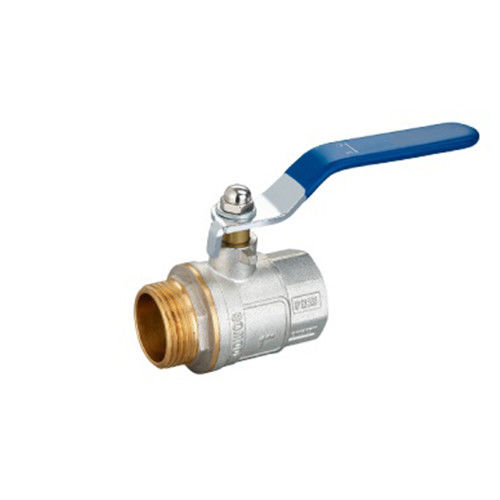

Gas Water Chrome Plating SS 2 Inch Threaded Ball Valve Brass Forged Two Piece Body /2" – 2″ (600WOG, 150WSP)
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-1213 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Ball | Application: | Home Kitchen |
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| Size: | 1/2 Inch | Working Temperature: | -10oC To 90oC |
| Ends: | Threaded | Pressure: | PN30 |
| Color: | Yellow | Warranty: | 3 Years |
| Seal: | PTFE Seal | Surface: | Forged |
| Gasket: | FTFE | Port Size: | 15mm |
| Valve Type: | Ball Valve | Matetrial: | Brass |
| Customized Support: | OEM, ODM, OBM | Head Code: | Square |
| High Light: | Water 2 Inch ball valve brass,Water 2 inch threaded ball valve,Gas ball valve brass |
||
Product Description
SS Threaded ball valve brass valve Forged Two-Piece Body Gas Water Chrome plating Manual Used for piping connections
Forged Two-Piece Body • Full Port
1/2" – 2″ (600WOG, 150WSP)
Threaded Comply With ANSI B 1.20.1
Meets MSS SP-110 Specification
Note: Chrome plating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel Wth Chrome Plating |
| Nut | BrasS ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 |
| Packing | Tefon°(PTFE) |
| Seats | Tefion°(PTFE) |
| 0-ring | NBR |
| Body | Brass ASTM B124-C37700 |
DIMENSIONS
| Size Model | DN | L | L1 | L2 | H |
| 1/2″ | 15 | 55.5 | 11 | 80 | 46.5 |
| 3/4" | 20 | 61.5 | 12 | 95 | 53 |
| 1" | 25 | 73.5 | 14.5 | 102 | 61 |
| 1 1/4″ | 32 | 87 | 16.5 | 136 | 71.5 |
| 1 1/2" | 40 | 101.5 | 19 | 136 | 79 |
| 2″ | 50 | 117.5 | 20.5 | 146 | 91 |
1. This high-quality ball valve is designed for use in gas and water applications. It features a chrome-plated stainless steel body with a two-piece construction, ensuring durability and longevity. The valve has a 2-inch threaded connection, making it easy to install and connect to existing piping systems. The brass forged construction adds strength and reliability to the valve, making it suitable for heavy-duty use.
2. With a pressure rating of 600WOG (Water, Oil, Gas) and 150WSP (Water, Steam, Gas), this ball valve is capable of handling high-pressure applications with ease. The threaded design allows for a secure and leak-free connection, ensuring the smooth flow of gas or water through the valve. The chrome plating on the stainless steel body not only enhances its appearance but also provides corrosion resistance, making it suitable for use in various environments.
3. The two-piece body design of this ball valve allows for easy maintenance and repair. In case of any issues, the valve can be disassembled into two parts, simplifying the process of replacing or repairing internal components. The 2-inch size of the valve makes it versatile and compatible with a wide range of piping systems. Whether you need to control the flow of gas or water in residential, commercial, or industrial settings, this ball valve offers reliable performance and peace of mind.
