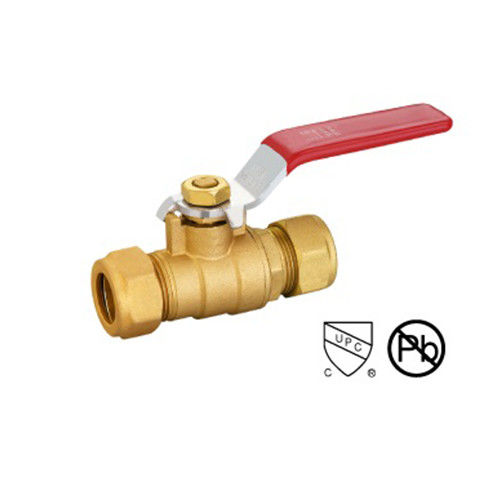

1/2–1″ Brass Ball Valve With COM X COM Forged With Compression
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-140 COM X COM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Application: | General |
|---|---|---|---|
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| Port Size: | 1/2 | Body Style: | Two-Piece |
| Surface Finish: | Nickel Plating | Weight: | Middle And Heavier Type |
| Temperature: | -10-110 | Temperature Of Media: | –20°C ~150°C (-4°F~302°F) |
| Seat Material: | PTFE | Head Code: | Round |
| Seal: | PTFE Seal | Seat Type: | 1 |
| Stem Material: | Brass | Handle: | Steel Handle |
| Theread: | F/f Iso228/1 | Prcie: | Factory Price |
| Threaded: | F/F ISO 228/1 | ||
| High Light: | 1/2 Brass Ball Valve,brass ball valve COM X COM,1 /2 full port threaded ball valve |
||
Product Description
Brass Ball Valve With COM X COM ball valve brass valve Forged Two-Piece Body WOG with compression for piping connections
Model NO.: LT-140 COM X COM
Brass Ball Valve With COM X COM
Forged Two-Piece Body ・ STD Port
1/2–1″ (600WOG, 150WSP)
Meets MSS SP-110 Specification
Note: Plain or Bronze Coating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel With Chrome Or Zinc Alloy |
| Nut | Brass ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 Or ASTM B16-C36000 |
| Packing | °(PTFE) |
| Seats | °(PTFE) |
| 0-ring | NBR |
| Ball | Brass ASTM B124-C37700 0Г ASTMB16-C36000 with hard Chrome plating |
| Body & Cap | Brass (ASTM B124-C37700) |
| Gland | Brass (ASTM B124-C37700) |
| Retaining Ring | Brass (ASTM B124-C37700) |
| DIMENSIONS | |||||||
| SIZE/MODEL | φD | φE | L | C | H(ref) | A(ref) | Weight(G) |
| 1/2" | 14.8 | 16.4 | 53.5 | 14.5 | 49.6 | 90 | 349 |
| 3/4" | 19 | 22.5 | 64.5 | 16 | 55.3 | 100 | 422 |
| 1" | 24 | 30 | 81.5 | 19 | 64 | 122 | 627 |
1. The 1/2-1 inch Brass Ball Valve with COM X COM is a high-quality valve designed for durability and reliability. Made from forged brass, this valve is built to last and can withstand high pressure and temperature conditions. The COM X COM connection ensures a secure and leak-proof fit, making it ideal for various plumbing applications.
2. This Brass Ball Valve features a compression fitting, which allows for easy installation and removal without the need for soldering or welding. The ball valve design provides a quick and convenient way to control the flow of water or other fluids, with a simple quarter-turn operation. The brass construction also resists corrosion and rust, ensuring long-lasting performance in both residential and commercial settings.
3. Whether you are working on a DIY plumbing project or need a reliable valve for industrial use, the 1/2-1 inch Brass Ball Valve with COM X COM is a versatile and dependable option. With its sturdy construction, easy installation, and smooth operation, this ball valve is a practical choice for controlling the flow of liquids in a wide range of applications. Invest in this high-quality valve for efficient and leak-free performance in your plumbing system.
