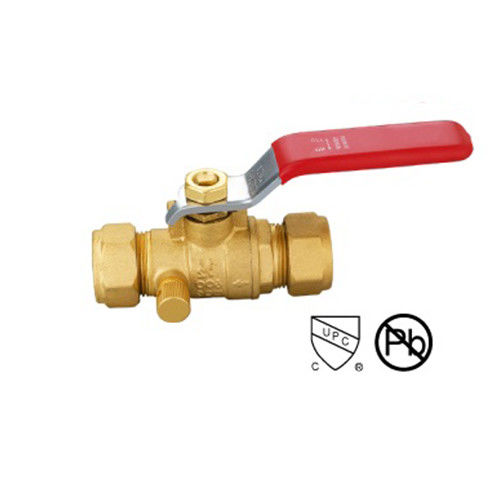

COM X COM With Drain Ball Valve Brass with drain Forged Two Piece Body WOG With Compression strainer
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-141 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Ball,COM X COM With Drain | Application: | General |
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| Product Number: | QS-3-002 | Threaded: | F/F ISO228/1 |
| Temperature Of Media: | Normal Temperature | Pressure: | PN30 |
| Color: | Customer's Request | End Connection: | Female X Female |
| Valve Type: | Ball Valve | Test: | 100％ Leak Tested |
| Ball Seat Materila: | PTFE | Available Size: | 1/2 |
| Connection: | Female | Technolgy: | Forged |
| Pressure Rating: | 150 PSI | Port Type: | Full Port |
| High Light: | COM X COM ball valve brass,Brass drain ball valve,Forged ball valve brass |
||
Product Description
COM X COM With Drain ball valve brass valve Forged Two-Piece Body WOG with compression with drain
Model NO.: LT-141
Brass Ball Valve COM X COM With Drain
Forged Two-Piece Body • STD Port 1/2′ -V (600WOG, 150WSP)
Meets MSS SP-110 Specification
Note: Plain or Bronze Coating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel With Chrome Or Zinc Alloy |
| Nut | Brass ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 Or ASTM B16-C36000 |
| Packing | °(PTFE) |
| Seats | °(PTFE) |
| 0-ring | NBR |
| Ball | Brass ASTM B124-C37700 0Г ASTMB16-C36000 with hard Chrome plating |
| Body & Cap | Brass (ASTM B124-C37700) |
| Gland | Brass (ASTM B124-C37700) |
| Retaining Ring | Brass (ASTM B124-C37700) |
| DIMENSIONS | |||||||
| SIZE/MODEL | φD | L | H(ref) | A(ref) | B | C | Weight(G) |
| 1/2" | 16 | 59.5 | 43.5 | 90 | 26.2 | 15.8 | 265 |
| 3/4" | 22 3 | 73.5 | 52.5 | 110 | 29.2 | 21.8 | 458 |
| 1" | 28.7 | 88 | 57.7 | 110 | 34 | 24.7 | 664 |
1
The brass forged two-piece body of this COM X COM with drain ball valve ensures durability and reliability in various applications. With a working pressure of WOG, this valve is designed to withstand high pressure environments. The compression fitting allows for easy installation and a secure connection, making it a practical choice for plumbing systems.
2
Constructed from high-quality brass, this COM X COM valve is built to last and perform efficiently. The two-piece body design provides easy access for maintenance and repairs, ensuring minimal downtime. The drain ball valve feature allows for quick drainage of the system, preventing potential damage or leaks.
3
Whether used in residential or commercial settings, this COM X COM valve offers peace of mind with its sturdy construction and reliable performance. The compression fitting ensures a tight seal, reducing the risk of leaks and ensuring smooth operation. With its WOG rating, this valve is a versatile option for a wide range of applications.
