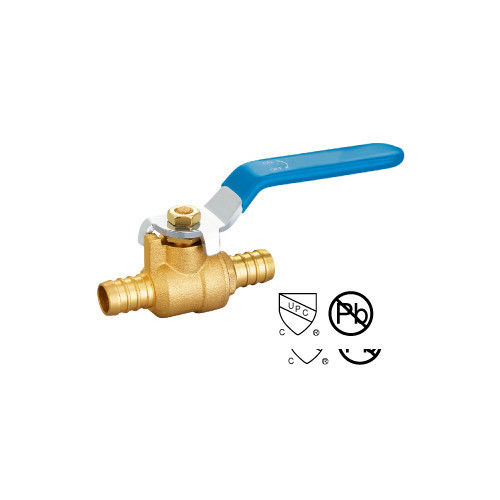

high quality Plain Or Bronze Coating Pex X 3/8"-1" Pex Ball Valve With Drain 600WOG brass
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-172 Pex X Pex |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Ball | Application: | General |
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| Body Style: | 2-Piece | Handle Finish: | Chrome Plated |
| Port: | Ningbo/shanghai | Matetrial: | Brass |
| Color: | Yellow | Seal: | PTFE |
| Head Code: | Round | Accept: | OEM |
| Sureface: | Nickel | Connection End: | Thread |
| Body Material: | Brass | Handle Type: | Lever |
| Temperature: | 200°F | Lead Time: | 21 Days |
| High Light: | 600WOG 1/ 2 pex ball valve with drain,600WOG pex ball valve with drain,Plain 1 /2 pex ball valve with drain |
||
Product Description
Pex X Pex brass ball valve brass valve Plain or Bronze Coating WOG used for pipe connection manually operation
Model NO.: LT-172 Pex X Pex
Forged Two-Piece Body • STD Port 1/2* -1″(600WOG, 150WSP)
Meets MSS SP-110 Specification Note: Plain or Bronze Coating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel With Chrome Or Zinc Alloy |
| Nut | Brass ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 Or ASTM B16-C36000 |
| Packing | °(PTFE) |
| Seats | °(PTFE) |
| 0-ring | NBR |
| Ball | Brass ASTM B124-C37700 0Г ASTMB16-C36000 with hard Chrome plating |
| Body & Cap | Brass (ASTM B124-C37700) |
| Gland | Brass (ASTM B124-C37700) |
| Retaining Ring | Brass (ASTM B124-C37700) |
| DIMENSIONS | ||||
| Model | 3/8" | 1/2′ | 3/4″ | 1'' |
| Size | ||||
| φD | 6 | 9.3 | 13.6 | 18.3 |
| L | 62.5 | 62 | 71 | 84 |
| H(ref) | 35.5 | 35.5 | 41 | 46.5 |
| A(ref) | 84.5 | 84.5 | 84.5 | 101 |
| Weight(G) | 105 | 117 | 192 | 304 |
