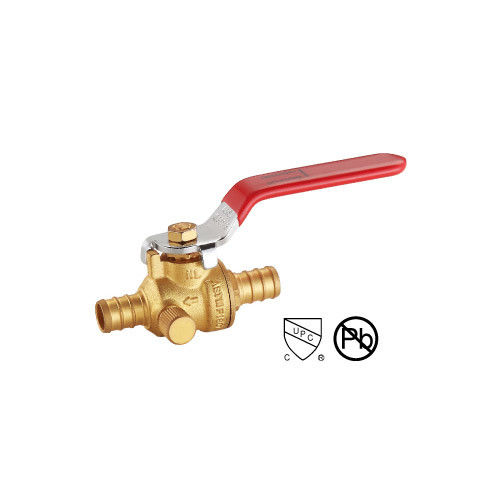

Pex X Pex Ball Valve With Drain Plain Or Bronze Coating WOG For Pipe Connection Port1/2”-1”(600WOG,150WSP)
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-172A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Features: | Corrosion-resistant, Durable, Easy To Install | Media: | Water,Gas,Oil |
|---|---|---|---|
| Material: | Brass | Structure: | Ball,LT-172 Pex X Pex |
| Application: | General | Power: | Pneumatic |
| Product Name: | Brass Ball Valve | Medium: | Water Oil Gas |
| Standard: | ANSI | Thread: | NPT G BSP |
| Port Size: | 1/2 | Connection Type: | Threaded |
| Technics: | CNC | Handle: | ABS |
| Operation Type: | Manual | Matetrial: | Brass |
| Technolgy: | Forged | Processing Technic: | Sand Blast And Nickel Plate |
| Connection End: | Thread | Customized Support: | OEM, ODM, OBM |
| Gasket: | FTFE | Pressure: | Medium Pressure |
| High Light: | Plain pex ball valve with drain,Bronze Coating pex ball valve with drain,pex brass ball valve with drain |
||
Product Description
Pex X Pex with drain brass ball valve brass valve Plain or Bronze Coating WOG used for pipe connection manually
Model NO.: LT-172A
Forged Two-Piece Body · STD Port1/2”-1”(600WOG,150WSP)
Meets MsS SP-110 Specification
Note: Plain or Bronze Coating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel With Chrome Or Zinc Alloy |
| Nut | Brass ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 Or ASTM B16-C36000 |
| Packing | °(PTFE) |
| Seats | °(PTFE) |
| 0-ring | NBR |
| Ball | Brass ASTM B124-C37700 0Г ASTMB16-C36000 with hard Chrome plating |
| Body & Cap | Brass (ASTM B124-C37700) |
| Gland | Brass (ASTM B124-C37700) |
| Retaining Ring | Brass (ASTM B124-C37700) |

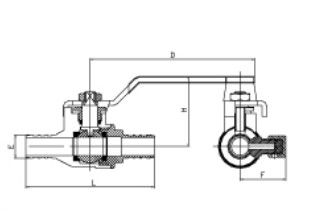

| DIMENSIONS | ||||||
| SIZE/MODEL | φD | L | H(ref) | φE | F | Weight(G) |
| 1/2" | 84.5 | 65.9 | 36 | 11.96 | 23.5 | 125 |
| 3/4" | 84.5 | 75 | 41 | 16.94 | 27 | 205 |
| 1" | 101 | 89 | 46.5 | 21.74 | 31 | 310 |
1. The Pex X Pex with drain brass ball valve is a versatile plumbing component that is commonly used for pipe connections. This particular valve is made of brass, which is known for its durability and resistance to corrosion. The brass material ensures that the valve can withstand the rigors of everyday use without deteriorating quickly. Additionally, the valve features a drain function, allowing for easy maintenance and servicing when needed.
2. The brass ball valve included in the Pex X Pex with drain brass ball valve is designed for manual operation, making it easy to control the flow of water or other fluids through the pipe. The valve can be opened or closed by simply turning the handle, providing a convenient way to regulate the flow as needed. This manual operation also allows for quick adjustments in case of emergencies or maintenance requirements.
3. The Plain or Bronze Coating WOG on the brass valve adds an extra layer of protection against corrosion and wear. The coating helps to extend the lifespan of the valve, ensuring that it remains in optimal condition for a longer period of time. Whether used in residential or commercial settings, the Pex X Pex with drain brass ball valve with Plain or Bronze Coating WOG is a reliable and efficient choice for pipe connections that require manual control.
