600WOG 150WSP Full Port 1/ 2 Solder Ball Valve With Chrome Plating Or Zinc Alloy 1/2–1″
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-3031 Solder |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Ball, | Application: | General |
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ANSI |
| Handle Material: | Steel | Surface Finish: | Chrome-Plated |
| Marerial: | Brass | Temperature: | -10-110 |
| Pressure: | Medium Pressure | Standard Or Nonstandard: | Standard |
| Port Size: | . | Brass Material: | HPB57-3 |
| Working Pressure: | 30Bar | Head Code: | Round |
| Seal Material: | PTFE | Temperature Of Media: | Normal Temperature |
| Handle Finish: | Chrome Plated | Working Temperature: | -10~120°C（14～248°F） |
| High Light: | 600WOG solder ball valve,600WOG 1/ 2 solder ball valve,150WSP solder ball valve |
||
Product Description
factory solder valve brass ball valve with drain handle Steel With Chrome plating Or Zinc Alloy

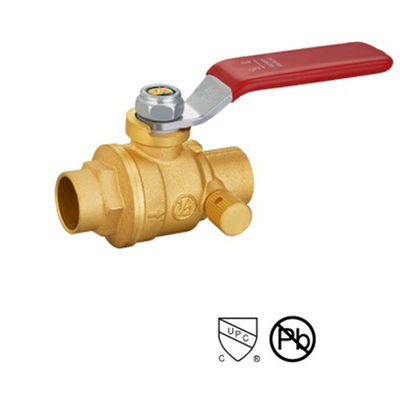

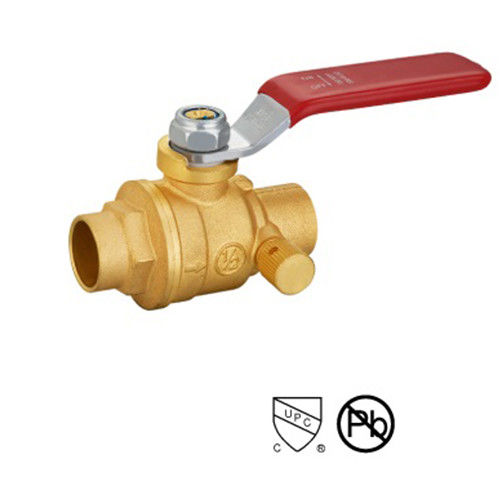

Brass Ball Valve With Drain
Forged Two-Piece Body ・ Full Port
1/2–1″ (600WOG, 150WSP)
Solder Ends Comply With ANSI B16.18
Meets MSS SP-110 Specification
Note: Plain or Bronze Coating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel with Chrome plating Òr Zinc Alloy |
| Nut | Brass ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 Or ASTM B16-C36000 |
| Packing | °(PTFE) |
| Seats | °(PTFE) |
| 0-ring | NBR |
| Ball | Brass ASTM B124-C37700 or ASTM B16-C36000 with hard Chrome plating |
| Body | Brass (ASTM B124-C37700) |
| GLAND&drain | Brass (ASTM B124-C37700) |

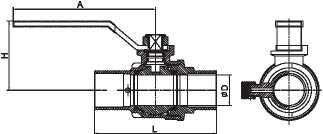

DIMENSIONS
| Size Model | φD | L | H(ref) | A(ref) | B | C |
| 1/2” | 16 | 59.5 | 43.5 | 90 | 26.2 | 15.8 |
| 3/4″ | 22.3 | 73.5 | 53 | 110 | 29.2 | 21.8 |
| 1″ | 28.7 | 88 | 57.5 | 110 | 34 | 24.7 |
1. The 600WOG 150WSP Full Port 1/2 Solder Ball Valve with Chrome Plating or Zinc Alloy is a high-quality valve designed for optimal performance in various applications. With a working pressure of 600WOG and 150WSP, this valve is suitable for handling a wide range of fluids and gases. The full port design ensures minimal flow restriction, allowing for efficient operation and maximum flow capacity.
2. This ball valve is specifically designed for easy installation with a 1/2 inch solder connection, making it ideal for use in plumbing systems and other industrial applications. The chrome plating or zinc alloy construction provides durability and corrosion resistance, ensuring long-lasting performance even in harsh environments. The valve is precision-engineered to provide smooth operation and reliable sealing to prevent leaks.
3. Whether used in residential, commercial, or industrial settings, the 600WOG 150WSP Full Port 1/2 Solder Ball Valve with Chrome Plating or Zinc Alloy offers a reliable and cost-effective solution for controlling the flow of fluids and gases. Its compact design and versatile compatibility make it a versatile choice for a wide range of applications. Trust in the quality and performance of this ball valve for your plumbing and fluid control needs.
