STD Port Flange Brass 1/ 2 Inch Solder Ball Valve Flange End Steel Chrome Plating 3/4″
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-3040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Thread | Application: | General |
| Power: | Manual | Product Name: | Brass Ball Valve |
| Medium: | Water Oil Gas | Standard: | ISO9001 CE Customized |
| Valve Type: | Ball Valve | Handle Type: | Lever |
| Stem Type: | 1 | Surface Finish: | Shotting |
| Packing: | PP Plastic + Carton | Matetrial: | Brass |
| Surface: | Nickel | Port: | Ningbo |
| Connection Type: | Threaded | Flow Rate: | Full Port |
| Seal: | PTFE Seal | Ends: | Female X Female |
| High Light: | STD solder ball valve,STD 1/ 2 inch solder ball valve,Chrome plating solder ball valve |
||
Product Description

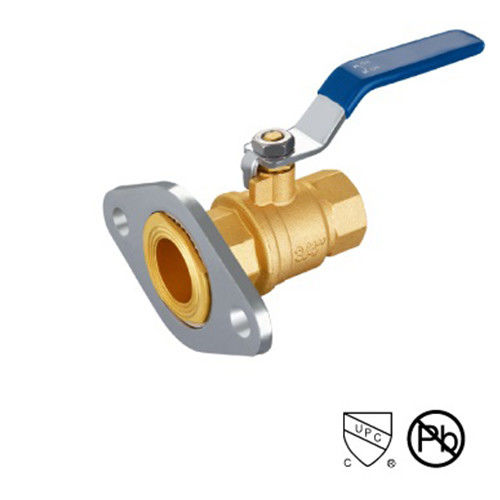

factory solder Flange Ball Valve brass ball valve Solder ball valve flange end Steel with Chrome plating
Flange Ball Valve
Forged Two-Pieces Body • STD Port
Pipe Threaded Comply With ANSI B1.20.1 Note: Plain
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel with Chrome plating Òr Zinc Alloy |
| Nut | Brass ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 Or ASTM B16-C36000 |
| Packing | °(PTFE) |
| Seats | °(PTFE) |
| 0-ring | NBR |
| Ball | Brass ASTM B124-C37700 or ASTM B16-C36000 with hard Chrome plating |
| Body | Brass (ASTM B124-C37700) |
| flange end | Steel with Chrome plating |

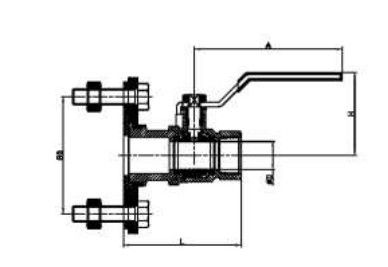

DIMENSIONS
| Model
Size |
1/2" | 3/4″ | 1” | 1 1/4″ | 1 1/2″ |
| 4>D | 13 | 19 | 25.4 | 32 | 32 |
| L | 74.7 | 79.8 | 92.7 | 105.2 | 106.7 |
| H(ref) | 51 | 57 | 67 | 75 | 75 |
| A(ref) | 90 | 95 | 117 | 118 | 118 |
1. This product is a brass 1/2 inch solder ball valve with a STD port flange. The valve is designed to control the flow of fluids in plumbing systems. The brass construction ensures durability and resistance to corrosion, making it suitable for long-term use. The 1/2 inch size refers to the diameter of the valve, which is a common size used in residential and commercial plumbing applications.
2. The STD port flange on this ball valve provides a secure connection to the plumbing system. The flange end allows for easy installation and removal, making it convenient for maintenance or repairs. The steel chrome plating adds a sleek and polished finish to the valve, enhancing its aesthetic appeal. Additionally, the chrome plating provides an extra layer of protection against rust and corrosion, ensuring the valve remains in optimal condition.
3. With its solder connection, this ball valve offers a reliable and leak-free joint. The soldering process involves heating the brass valve and applying solder to create a strong bond between the valve and the pipe. This ensures a tight seal and prevents any leakage. The ball valve design allows for easy operation, with a lever handle that can be turned to control the flow of fluids. Whether used in residential or commercial applications, this brass solder ball valve with a STD port flange and steel chrome plating is a reliable and durable choice for plumbing systems.
