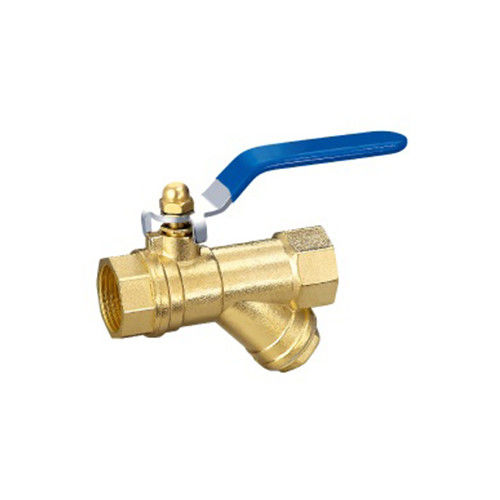

1/2 Inch Brass 600 Wog Ball Valve With Strainer Female And Male Threaded With Drain 1/2”-1"(600WOG, 150WSP)
Product Details:
| Place of Origin: | China |
| Brand Name: | MB |
| Model Number: | LT-8001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Media: | Water,Gas,Oil | Material: | Brass |
|---|---|---|---|
| Structure: | Ball, | Power: | Manual |
| Product Name: | Brass Ball Valve | Medium: | Water Oil Gas |
| Type: | BALL VALVES | Packing: | PP Plastic + Carton |
| Color: | Silvery White | Body Material: | Zinc Alloy |
| Range: | Gas Pipe Connection | Thread: | NPT G BSP |
| Handle Material: | Red Aluminum Handle | Seal Material: | PTFE |
| Nominal Pressure: | 16Bar | Application: | Water, Oil, Gas |
| Certifications: | NSF, UL, CSA | Test: | 100％leak Tested |
| Standard: | NPT BSP Thread | Size: | 1/2 Inch |
| Function: | Industry | ||
| High Light: | Brass 600 wog ball valve,1/2 inch 600 wog ball valve,1/2 600 wog valve |
||
Product Description
factory Brass ball Valve with strainer femal and male threaded ball valve pipe fitting
Model NO.: LT-8001
Brass ball Valve with strainer
Forged Two-Piece Body * Full Port
1/2”-1"(600WOG, 150WSP)
Threaded Comply With ANSI B1.20.1
Meets MSS SP.110 Specification
Note: Plain or Bronze Coating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel with Chrome plating Òr Zinc Alloy |
| Nut | Brass ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 Or ASTM B16-C36000 |
| Packing | °(PTFE) |
| Seats | °(PTFE) |
| 0-ring | NBR |
| Ball | Brass ASTM B124-C37700 or ASTM B16-C36000 with hard Chrome plating |
| Body | Brass (ASTM B124-C37700) |
| gland | Steel with Chrome plating |
1. The factory produces brass ball valves with strainers, designed for both female and male threaded ball valve pipe fittings. These valves are equipped with a drain feature, allowing for easy maintenance and drainage when needed.
2. The brass material ensures durability and longevity, making these valves suitable for various applications where corrosion resistance is essential. The strainer helps prevent debris from entering the valve, ensuring smooth operation and prolonging the lifespan of the system.
3. With both female and male threaded options available, these ball valves can be easily integrated into different piping systems, providing flexibility and convenience during installation. The addition of a drain further enhances the functionality of these valves, making them a practical choice for industrial and commercial settings.
